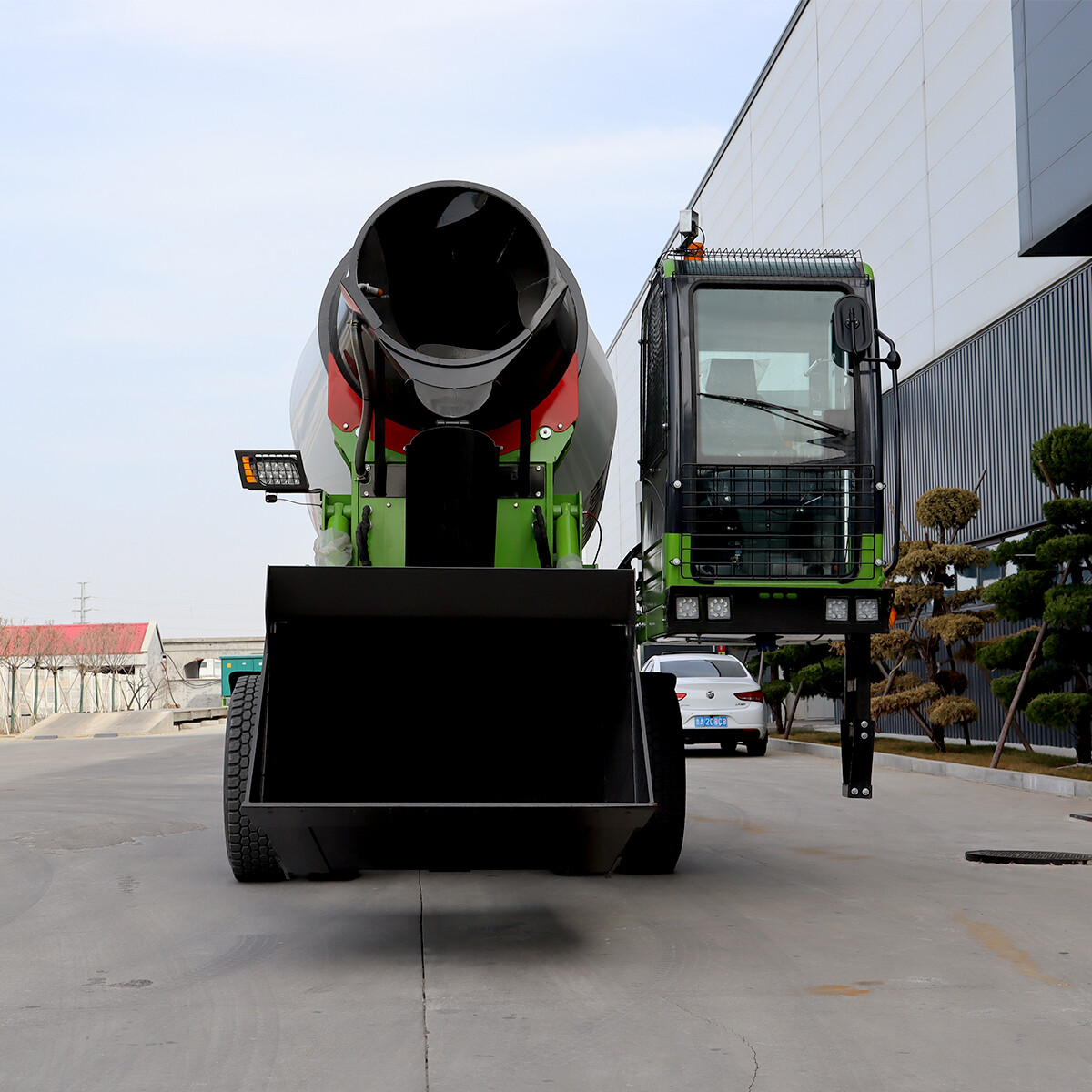

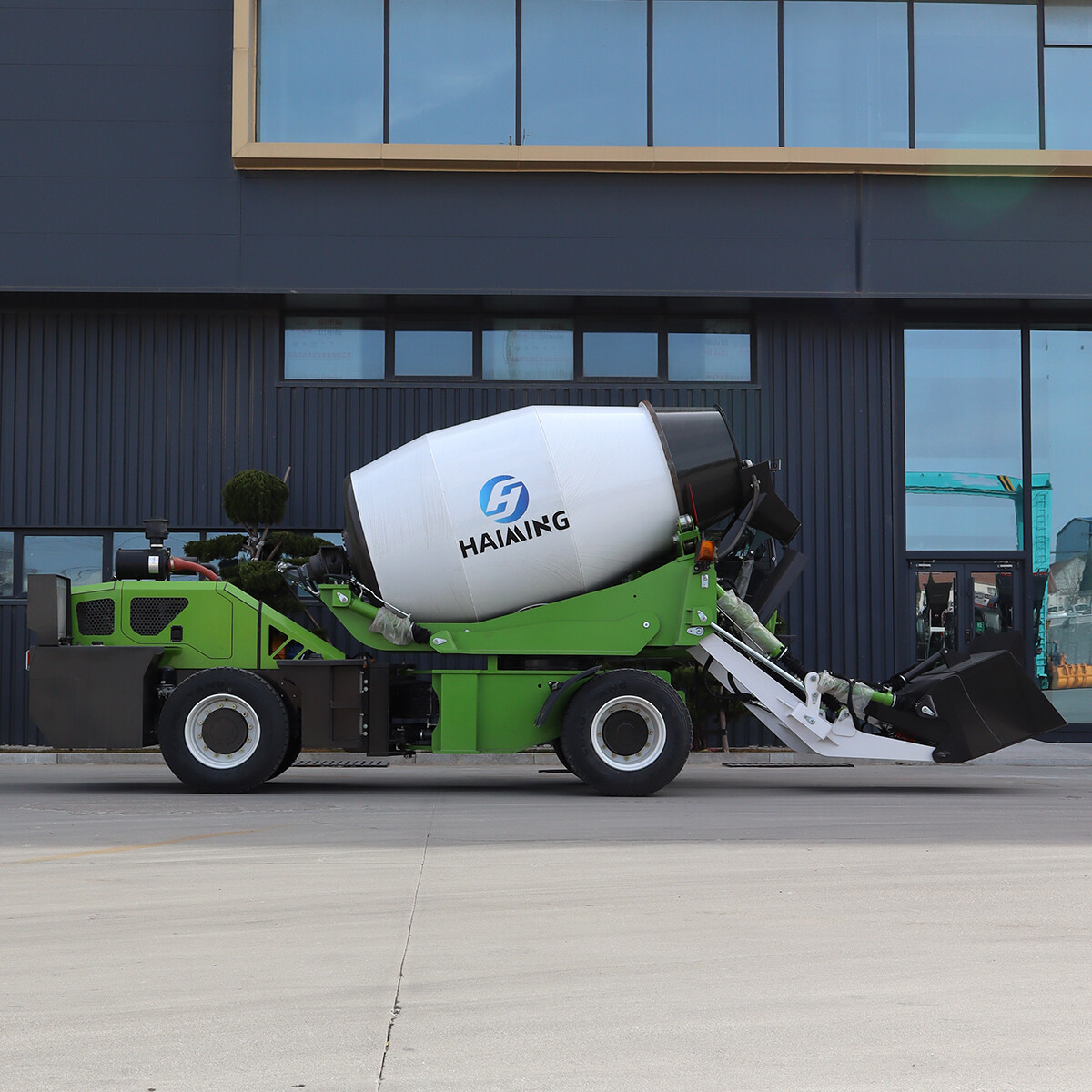

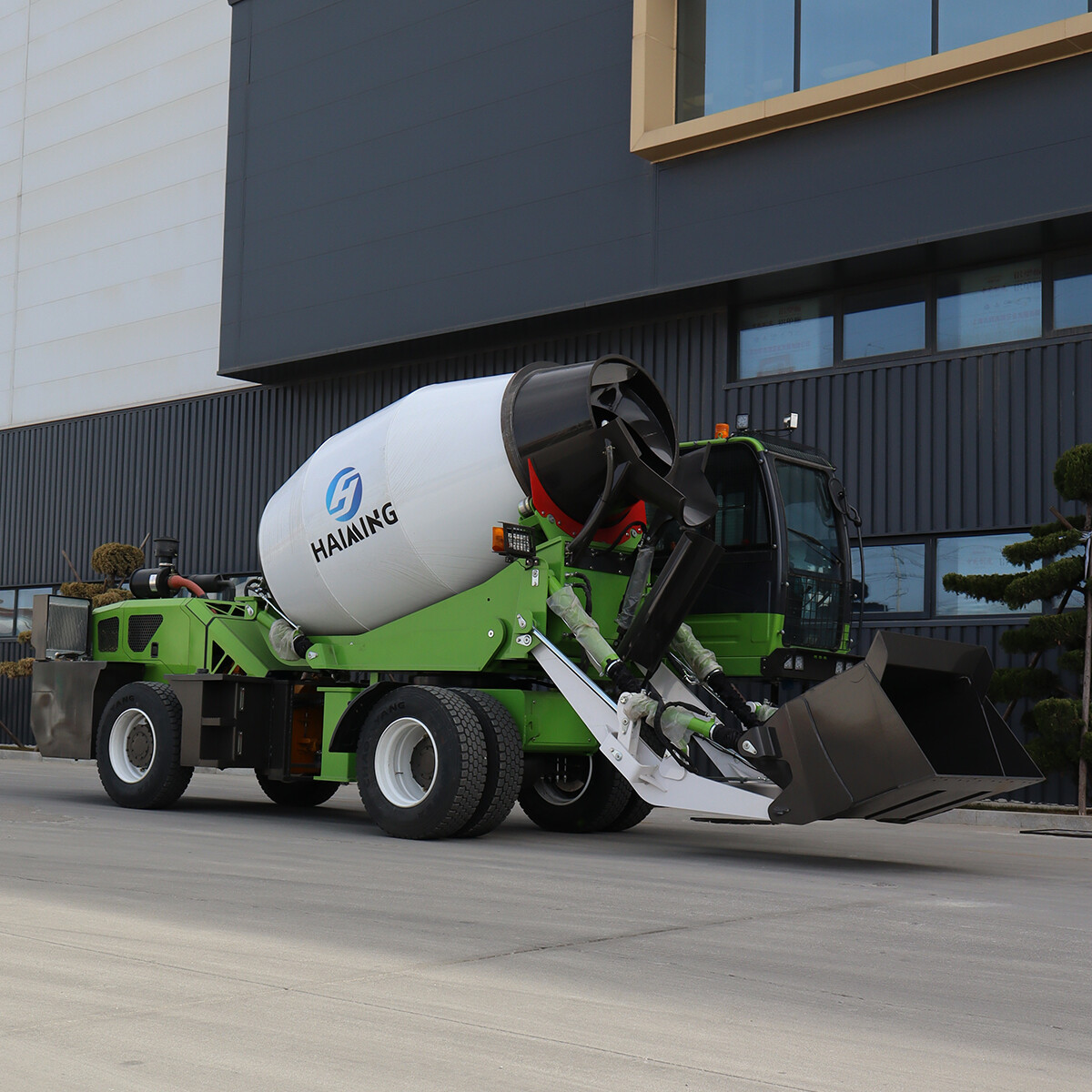

4.0 CBM Self Loading Concrete Mixer Truck

Minimum Order Quantity :
Packaging :
Delivery Time :
Certification :
Delivery method :
Payment Terms :
Customization :
After-sales Service :

1 unit
Standard shipping packing
10-15 working days
CCC, ISO, CE
EXW,FOB,CIF,FCA,DDP
T/T, L/C, Western Union
Available
Support Remote Warranty

Products Description


Vehicle Parameters

Overall Dimensions(LxWxH)

8450x3000x4500

Wheel base (mm)

3300

Curb Weight(kg)

9700

Drive form

Torque converter

Maximum speed(km/h)

35

Maximum gradeability

40°

Minimum Turning Radius(mm)

5300

Minimum ground clearance(mm)

380

                                                                              Diesel    Engine

Model

YUCHAI 4108 Turbo-charged

Rated   power

91KW

                                                                                  Gearbox

Gearbox model

ZL-315 Power shift gearbox

Gearbox gearshift

4 forward +4 Back

Conventional   parameters

Equipment model

JBC-40C

Service refill capacities

Fuel tank

120   liters

Total hydraulic system          120   liters
                     Oil           16 liters
Parameters of hydraulic system
                                              Reducer                                                                            HJ80-43
                                                 Pump                                                                          Rexroth   90
                                                 Motor                                                                               HYTEK
Water supply system parameters
  Tank volume920L
  Water supply   Time   relay



Advantage

The main hydraulic components are all imported!

Save 5 labours at least every day.

Don't need electric concrete mixer, save electricity up to 100 degrees every day.

Don't need concrete mixer truck anymore!

Don't need wheel loader to load material anymore!

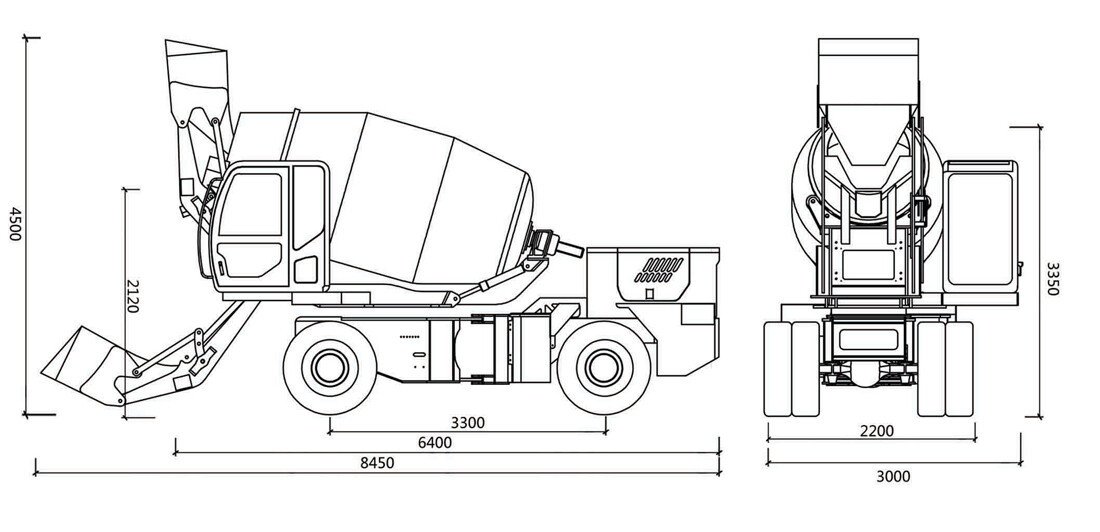

Overall size drawing

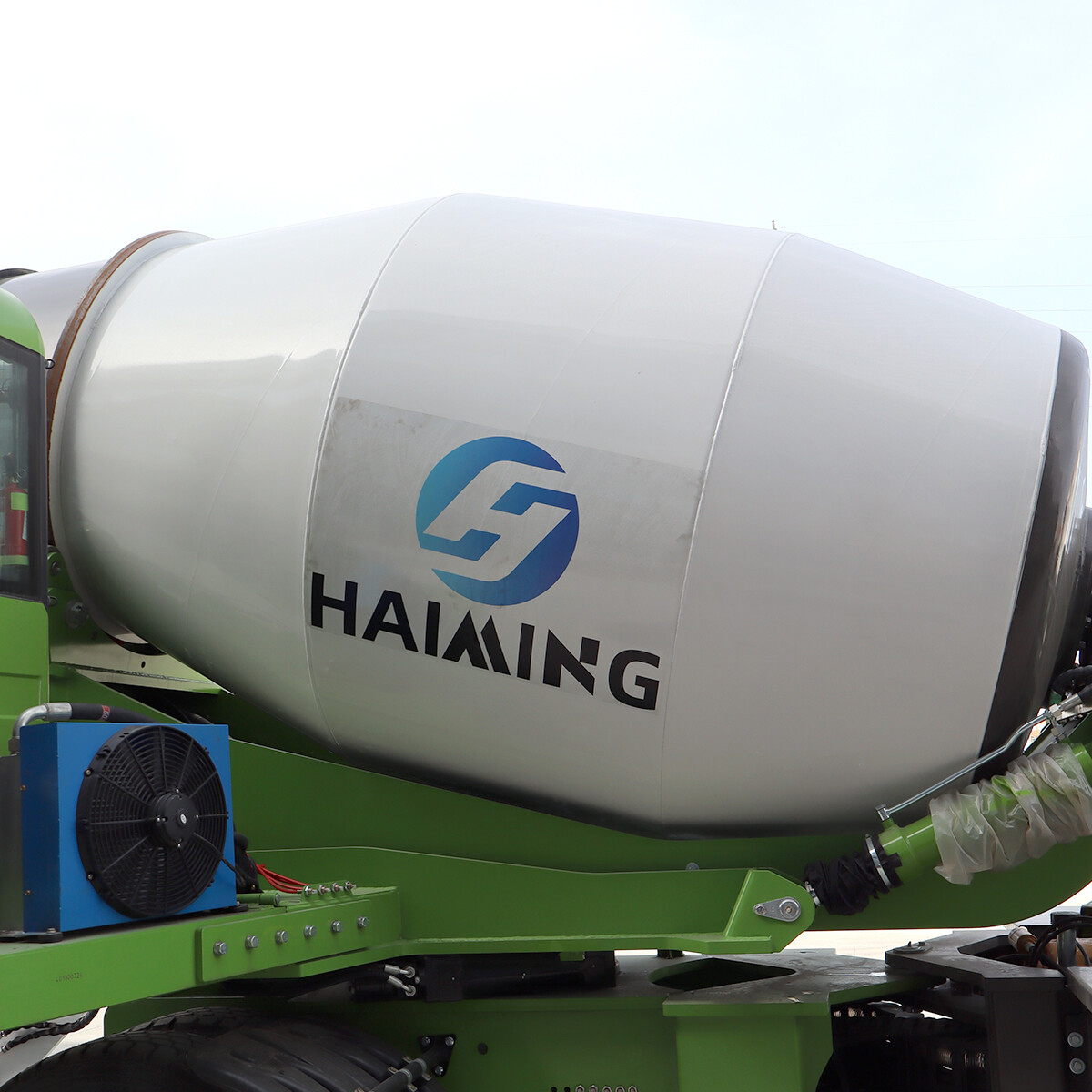

Details Images

下载 (4).jpg

Company Profile


Glory Engineering Equipment Group CO., LTD is located in the vibrant and promising land of Shandong Province, China. It is a comprehensive mechanical equipment manufacturing enterprise that integrates research and development, production, sales, and service. Since its establishment, we have always adhered to the corporate philosophy of "quality first, innovation leading", and are committed to providing customers with efficient, reliable, and environmentally friendly engineering equipment solutions.


Why Choose Us

5Why Choose Us.png

Customer Photos


FAQ

Q.Do you have your own factory?
A.We have our own factory with 10 years of production experience. In addition, we also have a factory for modified cars. In addition to trucks and excavators, there are also earth-moving machinery of various international brands. We sincerely welcome you to visit our factory.
Q.How long does it take for the order to arrive?
A.15 to 20 working days after we receive your 30% advance payment or 100% L/C at sight. The exact delivery time depends on the items and quantity you order.
Q. Can I take a sample or order one?
A.Yes, our MOQ is 1 set.
Q. When is the delivery time?
A.If we have standard models in stock, we can ship it within 10 days after payment. If we use trailers or trucks, we can take it out within 10 days after payment. Because we have to redecorate and paint. If it is new production, under normal circumstances, it can be completed within 20 days.
Q. What are your payment terms?
A.T/T: 30% deposit by T/T, 70% balance paid before shipment. L/C: 100% irrevocable L/C at sight.
