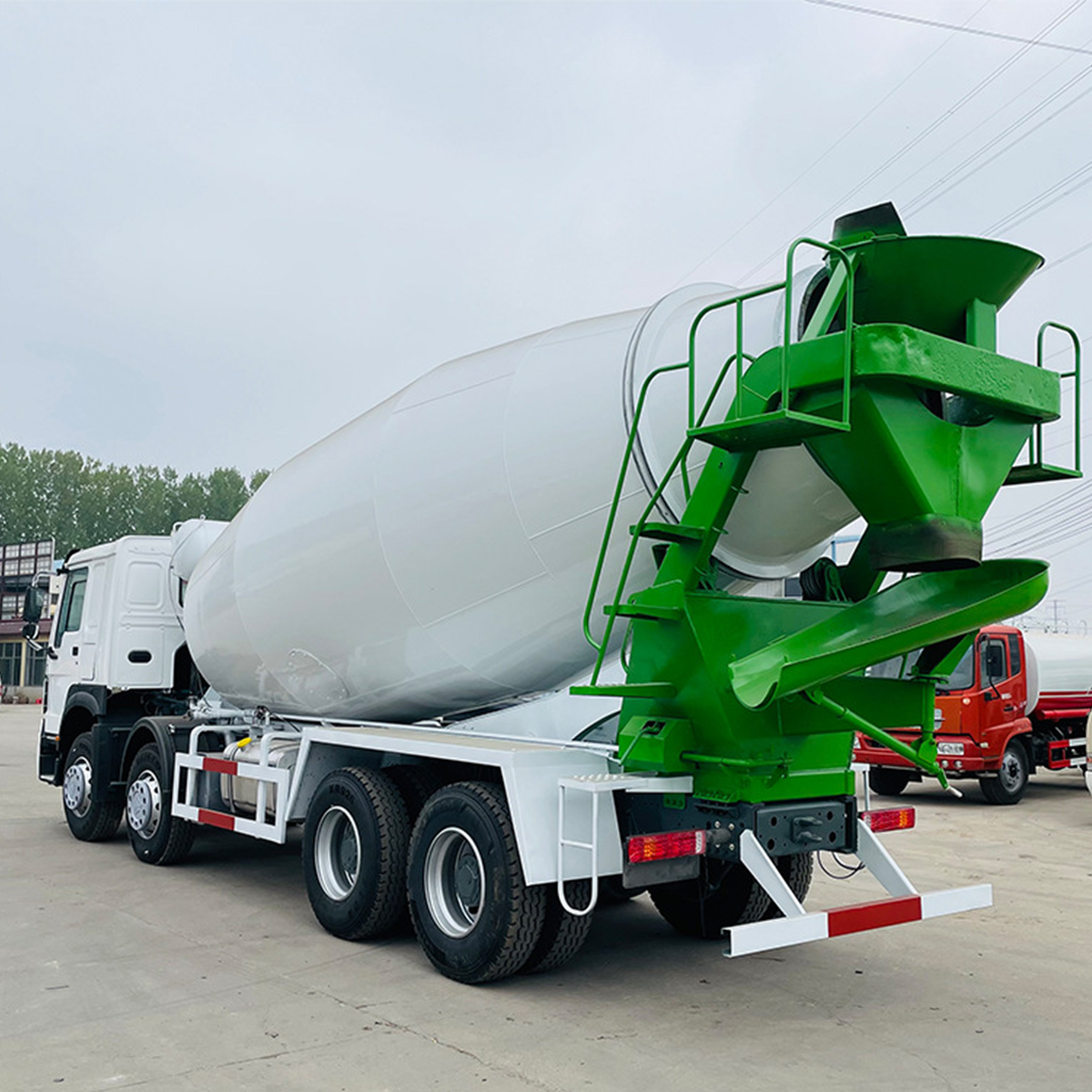

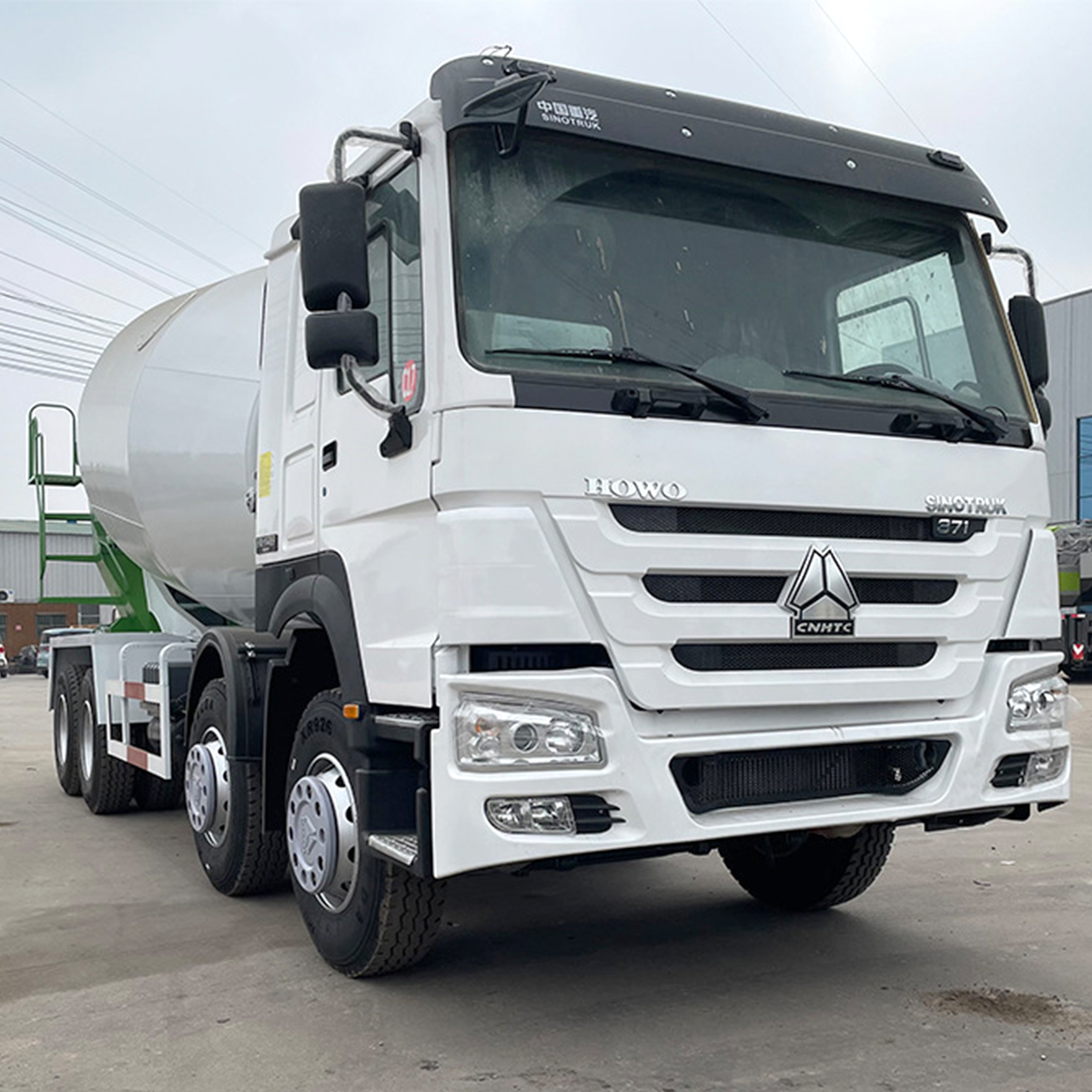

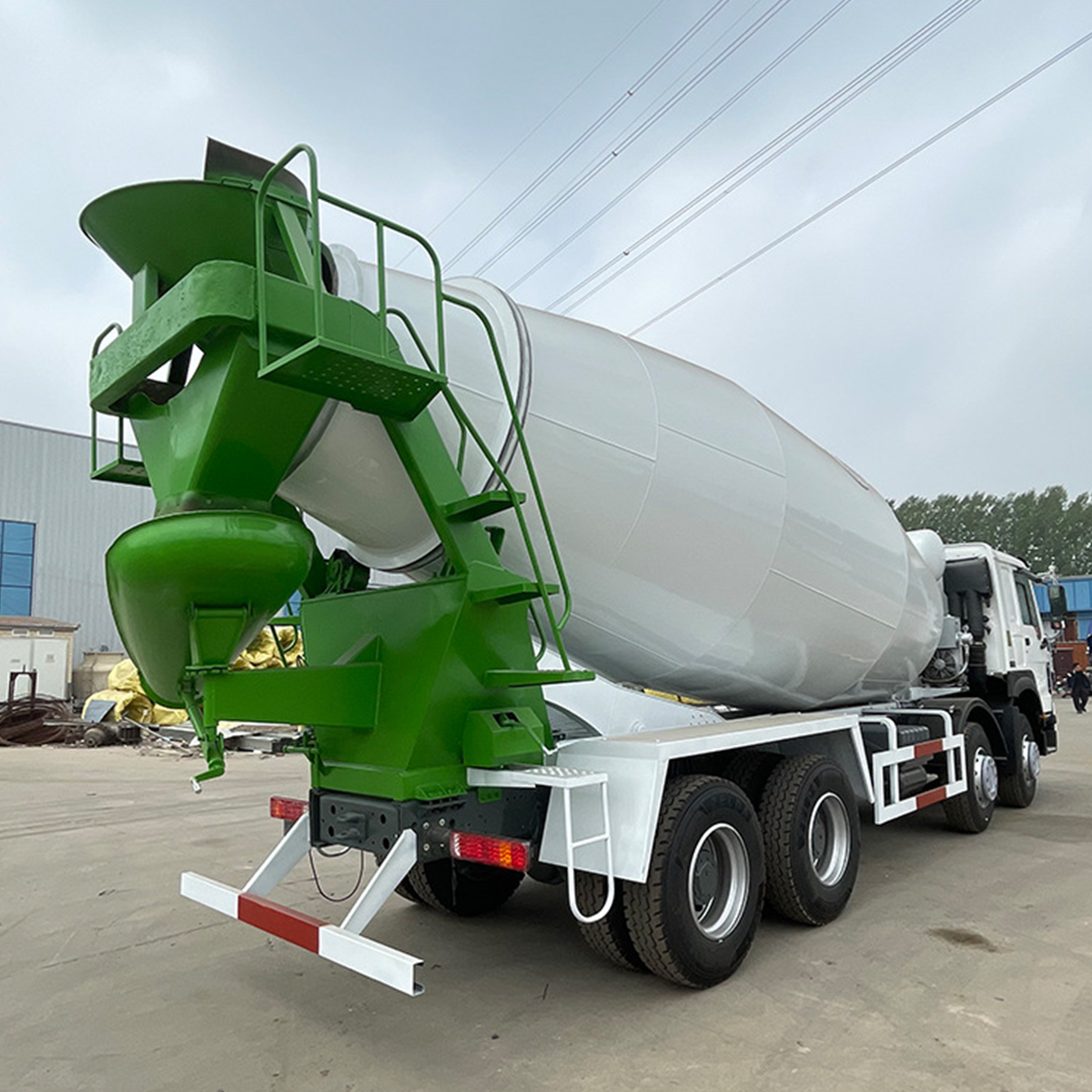

Howo 371 8X4 Concrete Cement Mixer Truck

Minimum Order Quantity :
Packaging :
Delivery Time :
Certification :
Delivery method :
Payment Terms :
Customization :
After-sales Service :

1 unit
Standard shipping packing
10-15 working days
CCC, ISO, CE
EXW,FOB,CIF,FCA,DDP
T/T, L/C, Western Union
Available
Support Remote Warranty

Products Description


Advantage:
1. Wear-resistant strips are installed on the top of the blade to extend the service life.
2. Different sections of the barrel are designed with different helix angles to eliminate the dead angle between the blade and the barrel arm, which has the advantages of fast feeding and discharging speed, good concrete homogeneity, low residual rate and no material accumulation.
3. The subframe adopts rectangular tubes with excellent torsion resistance and bending resistance, and adds flexible diagonal braces to greatly increase t
he service life of the frame.
4. Adopt international firstclass brand, high reliability. The hydraulic transmission parts used are the best brands in the industry, Sao, Italy, and PMP7.5 from Italy, with high reliability.


SPECIFICATIONS OF   Sinotruk Howo 371 6*4 Concrete Mixer Truck

Brand
Sinotruk Howo

Driving type 6X4, 8X4, LHD HW76 single bed
Vehicle Main Dimensions
Overall dimensions (L x W x H)mm
10245x2496x3450

Wheel base (mm)
3600+1350

Wheel track (front/rear) (mm)
2022/2022

Approach/Departure angle(°)
16/24
  Max. driving speed(km/h)
90
Engine
Type
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Model
WD615.47

Horse Power(HP)
371

Emission standard
Euro II
Gearbox
10 forwards & 2 reverse
Steering
Left hand drive
Tire
12R22.5 tubeless tires with one spare
Mixer Drum
Mixer Capacity
16 cubic meters

Drum thickness
6mm

Blade thickness
4mm

Tanker Material:
16MnQ345 Carbon Steel

Filling Rate(%)
59

Input Speed (m3/min)
≥2.8

Output Speed (m3/min)
≥1.2

Surplus Ratio
≤0.5

Tanker Rotate Speed(rpm)
0~17

Hydraulic Pump
Italy Brand: PMP
Drum Drive System
Hydraulic Motor
Italy Brand: PMP

Speed Reducer
Germany Brand

Radiator
KAITONG

Water Tank Volume(L)
400


Our dump trucks can be replaced with new tires, new seats, new center consoles, new gearboxes, new clutches, new engines, etc.

Details Images

下载 (4).jpg

Company Profile


Glory Engineering Equipment Group CO., LTD is located in the vibrant and promising land of Shandong Province, China. It is a comprehensive mechanical equipment manufacturing enterprise that integrates research and development, production, sales, and service. Since its establishment, we have always adhered to the corporate philosophy of "quality first, innovation leading", and are committed to providing customers with efficient, reliable, and environmentally friendly engineering equipment solutions.


Why Choose Us

5Why Choose Us.png

Customer Photos


FAQ

Q.Do you have your own factory?
A.We have our own factory with 10 years of production experience. In addition, we also have a factory for modified cars. In addition to trucks and excavators, there are also earth-moving machinery of various international brands. We sincerely welcome you to visit our factory.
Q.How long does it take for the order to arrive?
A.15 to 20 working days after we receive your 30% advance payment or 100% L/C at sight. The exact delivery time depends on the items and quantity you order.
Q. Can I take a sample or order one?
A.Yes, our MOQ is 1 set.
Q. When is the delivery time?
A.If we have standard models in stock, we can ship it within 10 days after payment. If we use trailers or trucks, we can take it out within 10 days after payment. Because we have to redecorate and paint. If it is new production, under normal circumstances, it can be completed within 20 days.
Q. What are your payment terms?
A.T/T: 30% deposit by T/T, 70% balance paid before shipment. L/C: 100% irrevocable L/C at sight.
